**Limit shapes beyond dimers**

The boxed plane partition (see Figure 1) is a tiling of a hexagon of side length $n$ by “lozenges”: tiles consisting of $60^{\circ}$ rhombi in one of the three possible orientations; one can also think of it as a projection of a stack of cubes stacked into an $n\times n\times n$ box in such a way that the surface of the stack projects monotonically to the plane $x+y+z=0$.

*Fig. 1: The boxed plane partition*

In the limit $n\to\infty$ under rescaling there is a well-known “limit shape phenomenon” [ref1, ref2] under which this surface in ℝ$^3$, defined by a uniform random boxed plane partition, when scaled by $n$, converges to a *nonrandom* surface. This surface is the unique surface spanning the boundary and minimizing a certain *surface tension*, which we can write as

$$\iint_{H} \sigma(\nabla h)\,dx\,dy,$$

where $H$ is the hexagon, $h:H\to$ ℝ is the function giving the height of the surface above the plane $x+y+z=0$.

There is a similar limit shape phenomenon for tilings of any other region, obtained by minimizing the surface tension with other boundary conditions [ref2, ref4].

The main tool for studying the lozenge tiling model is the determinantal formula describing the correlations between individual tiles. These are based on the formula due to Kasteleyn [ref3] which shows that the number of lozenge tilings of a simply connected polygonal region is the determinant of the adjacency matrix of an underlying graph.

In joint work with Jan de Gier and Sam Watson we consider a generalization of the lozenge tiling model, which we call the *five-vertex model* since it is a special case of the well-known six-vertex model in which one of the six local configurations is disallowed. This model is, concretely, a different measure on the same space of lozenge tilings: we simply give a configuration a weight probability proportional to $r$ to the power of the number of

adjacencies between two of the three types of tiles. The lozenge tiling model is the case $r=1$ of this model.

This new measure is no longer determinantal. Thus we must rely on the *Bethe Ansatz method* for counting the number of configurations and computing correlations. This is notoriously difficult to carry out and indeed the solution to the general six-vertex model is a well-known open problem. Somewhat remarkably, this calculation can be performed for the five-vertex model to get a complete limit shape theory: we can give an explicit PDE describing the limit shapes associated to the model.

Like the lozenge model, limit shapes are obtained by minimizing a surface tension $\sigma_r(\nabla h)$ for given boundary values. Again $\nabla h=(s,t)$ varies

over the triangle 𝒩$=cvx\{(0,0),(1,0),(0,1)\}$. The surface tension $\sigma_r:$𝒩$\to$ℝ is an explicit smooth convex function also involving the dilogarithm,

$$Li_2(z) := -\int_0^z\frac{\log(1-\zeta)}{\zeta}\,d\zeta.$$

see Figure 3. Unlike the lozenge case there is a certain curve in 𝒩

$$\gamma=\{(s,t)~:~1-s-t+(1-r^{-2})st=0\}$$

along which $\sigma$ is not analytic; for $(s,t)$ on the side of $\gamma$ near the line $s+t=1$ the underlying Gibbs measure $\mu_{s,t}$ is not *extremal*. Physically, we think of the paths consisting of the white and light gray lozenges as *attracting* each other; for typical configurations the paths clump together. On the other side of the curve these lines repel each other. The surface tension is conveniently written in terms of a pair of auxiliary complex variables $z,w$ lying on the *spectral curve* $0=P(z,w) = 1-z-w+(1-r^2)zw$.

The relation between $(s,t)$ and $(z,w)$ is described in Figure 2.

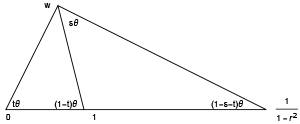

*Fig. 2: Given $r$ and a point $(s,t)\in$𝒩 (on the left side of the curve $\gamma$), there is a unique $w$ in the upper half plane satisfying the property that $t = \arg(w)/\arg(\frac{w}{1-w})$ and $s=\arg(z)/\arg(\frac{z}{1-z})$. Here $\bar z$ is the reflection of $w$ in the circle of radius $r/(1-r^2)$ centered at $1/(1-r^2)$.*

The Euler-Lagrange equation for the variational problem is the PDE that any minimizer will satisfy. In this case the PDE, when written in terms of the variables $z,w$ with $P(z,w)=0$, (each of which is a function of $x,y$) reduces to the wonderfully simple form

$$\frac{\partial B(w)}{\partial w} w_y – \frac{\partial B(z)}{\partial z} z_x = 0,$$

where $B(z) = \arg z\log|1-z|+ Im Li(z)$ is a nonanalytic function.

This research was supported by the NSF and the Simons foundation.

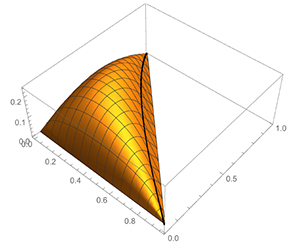

*Fig. 3: Minus surface tension as a function of $(s,t)\in$𝒩 with $r=.8$. The black line is the curve $\gamma$.*
